Firefighting Apparatus Adjustable Flow Nozzel , Fire Sprinkler Nozzle Max 16 Bar Pressure

Name: Firefighting Apparatus Adjustable Flow Nozzel Fire Sprinkler Nozzle Max 16 Bar Pressure
Brand: Mantern
Price: 1 USD

China Firefighting Apparatus Adjustable Flow Nozzel , Fire Sprinkler Nozzle Max 16 Bar Pressure wholesale

Brand Name : Mantern

Model Number : MTSN20 500

Place of Origin : China Mainland

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, L/C, PayPal

Supply Ability : 50000pcs per month

Delivery Time : 20 days

Packaging Details : Standard Export Package

Name : Adjustable Flow Nozzel

Hose Type : German, British, Machino, Russian, French, Canadian etc.

Pressure : Max. 16 bar

Rated flow : 350L/min

Adjustable range : 2.5 - 4.5 L/S

Rated Flow : Max. 500LPM

Contact Now

Adjustable Flow Nozzel Fire Fighting Water Gun Fire Sprinkler Nozzle

Specification:

Being made of light and hard aluminium for easy and simple handling and operation

Various connectors available in different styles including storz, NH, Russian, BS, JIC type etc. for different market

Flow rate being controlled and adjusted easily by twisting the adjustable head in clock wise

Specially designed for foam spray besides fire fighting water spray

Function:

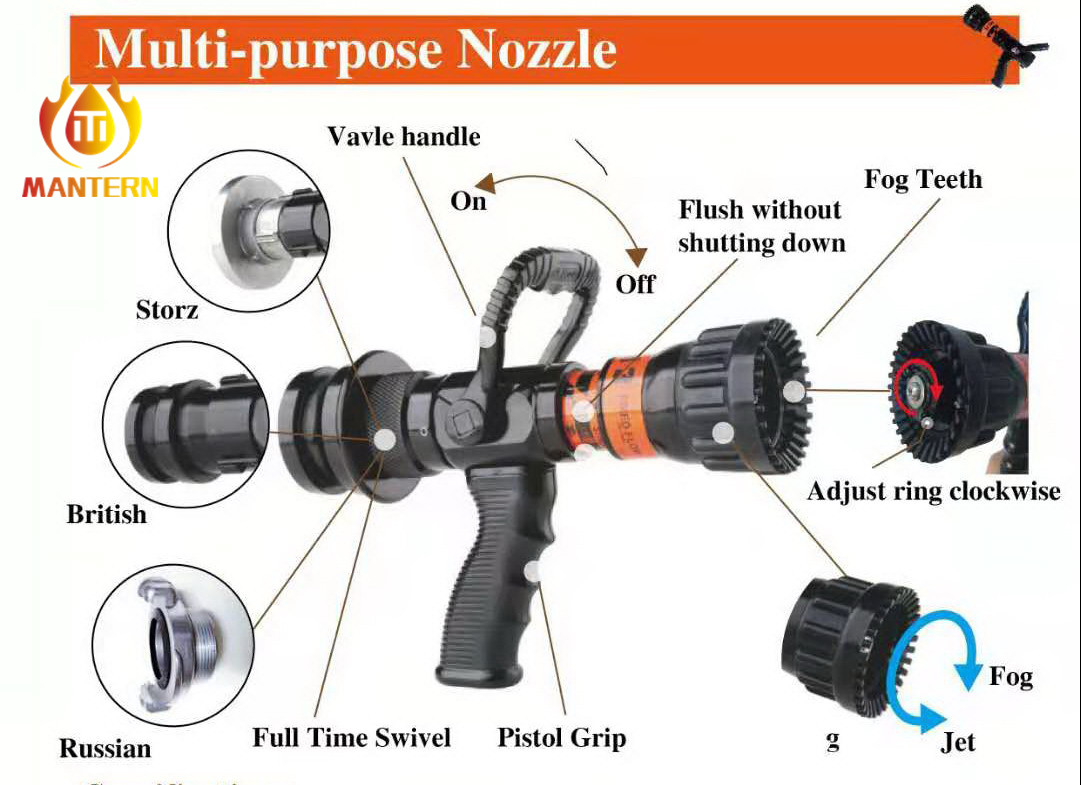

1. Selectable head can be adjusted in different patterns,such as straight stream, safeguarding water stream, fog stream and so on. Spinning teeth will makes the fog more sufficient.
2. Handle of U-type control open and closed,the handle points the outlet is closed.

3. Fixed working pressure:6bar,Max:16bar.
4. Choosing different flow rate by whirling the protective cover of the nozzle tip. When the water pressure is at 6bar,flow rate range is 150-250-350LPM, Max flow rate will reach 500LPM at 9-10bar.

Technical data:

Model Number	Connector size	Normal Rated Flow	Max. Rated Flow
MTSN20-500	1.5"/2"/2.5"	150 - 350LPM	500LPM
Working Pressure	Net Weight	Min. Jet Distance
100PSI(7 bar)	1.6KG	25M

Firefighting Apparatus Adjustable Flow Nozzel , Fire Sprinkler Nozzle Max 16 Bar Pressure
